Industrial Mini PC,8-PCB Fanless Mini PC Quad Core J4125,4*i226 2.5G LAN,DDR4/2*COM RS232(Support RS485)/HD/USB3.0, Mini Desktop Computer Support Dual Band WiFi for Home Office,NO RAM NO SSD
Product details
| Management number | 239779753 | Release Date | 2026/07/14 | List Price | US$80.00 | Model Number | 239779753 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Highlight J4125 model: -4xintel I226-V Network Card Chip -4*USB2.0,2*USB3.0,internal 2× USB 2.0 (one shared with 4G), 2*COM RS232 . -1*SODIMM DDR4 2400MHz Max 16G --Support two storage: 1*SATA3.0 6Gb/s;1*MSATA3.0 6Gb/s. -Support 1*HDMI1.4 Max 4K30hz -MPCIE : Support WiFi/4G module -SIM :1*Nano SIM -Support 8 GPIO channels Power Supply: DC 12V(2.5 55*25mm) Operating temperature/humidity: -20~60℃ /5~95%RH, relative humidity, no condensation. Temperature/humidity Storage temperature/humidity: -20~70℃ /5~95%RH, relative humidity, no condensation. PCB size 120*120mm ;measure Chassis size 145*127*37mm -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours. The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.
- ◆Powerful Celeron J4125 Processor: J4125 Processor, 4 Cores 4 Threads, 4M Cache, Max Turbo Frequency 2.7 GHz, TDP 10 W. Compatible with OPNsense, Linux, ESXI,Windows， OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- 【◆Quad 2.5G LAN: Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. .Support WiFi/4G module
- ◆DDR4 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR4 SO-DIMM memory 2400MHz, 1*SATA3.0 6Gb/s;1*MSATA3.0 6Gb/s.
- ◆UHD Graphics & Dual Display: J4125processor integrated UHD Graphics, HD display interfaces support 4K@30Hz. ◆Attention:The memory can be expanded up to 16GB, but due to system compatibility, it is recommended to use Samsung or Micron brand memory when using 16GB memory.

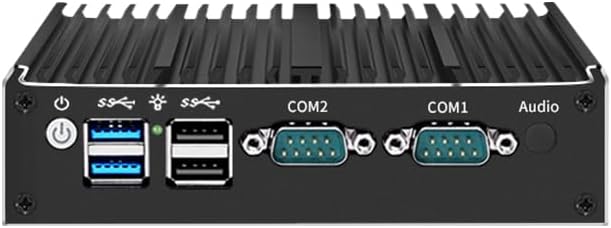

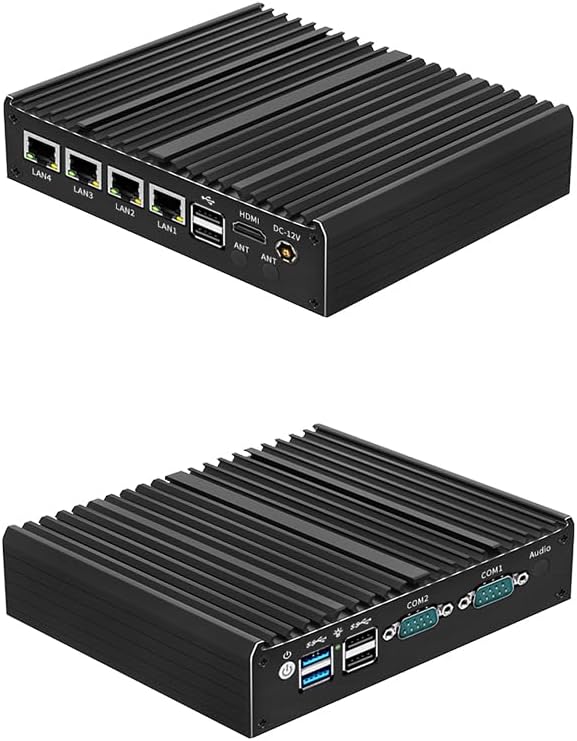

- ◆Rich interfaces: 4xintel I226-V LAN,2 xUSB3.0, 4 xUSB2.0, HDMI,AUDIO,2 RS232 COM(COM1/COM2 supports RS485 by adjusting hardware ) supports data storage and system boot.8-layer PCB board with guaranteed quality.
| ASIN | B0F9YHB76C |
|---|---|
| Brand | UDPTCP |
| RAM Type | DDR4 SDRAM |
| Model Name | CX-J4125-2C-4L |
| Manufacturer | UDPTCP |
| Memory Speed | 2400 MHz |
| Model Number | CX-J4125-2C-4L |
| Video Output | HDMI |
| BuiltIn Media | Water Cooling |
| Cooling Method | FAN |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | J4125 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | FCBGA1090 |
| Graphics Ram Type | L2 cache |
| Hardware Interface | Ethernet, HDMI, USB |
| Memory Clock Speed | 2400 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| CPU Model Speed Maximum | 2.7 GHz |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 16 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 1 |
| Personal Computer Design Type | Mini PC |
