Industrial 30W Gigabit PoE Injector IEEE 802.3at Adapter 12-48V DC Input DIN Rail Mount

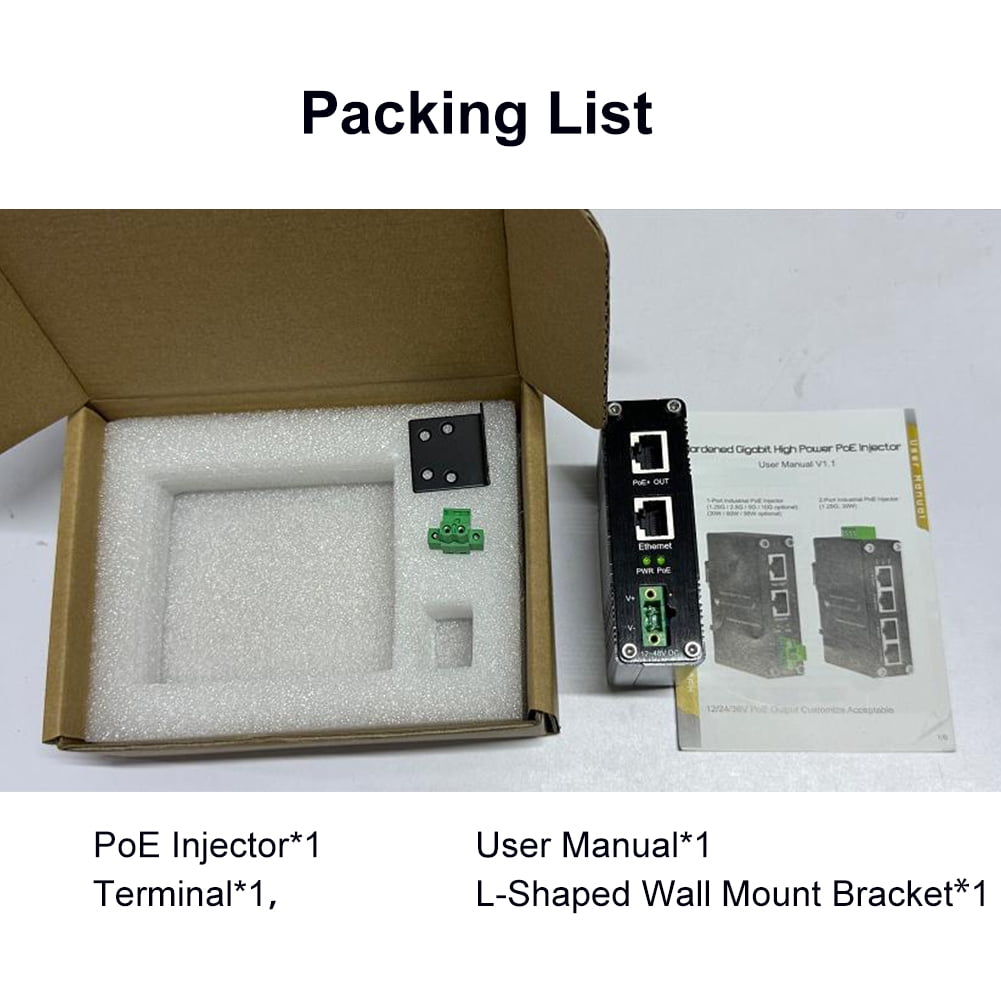

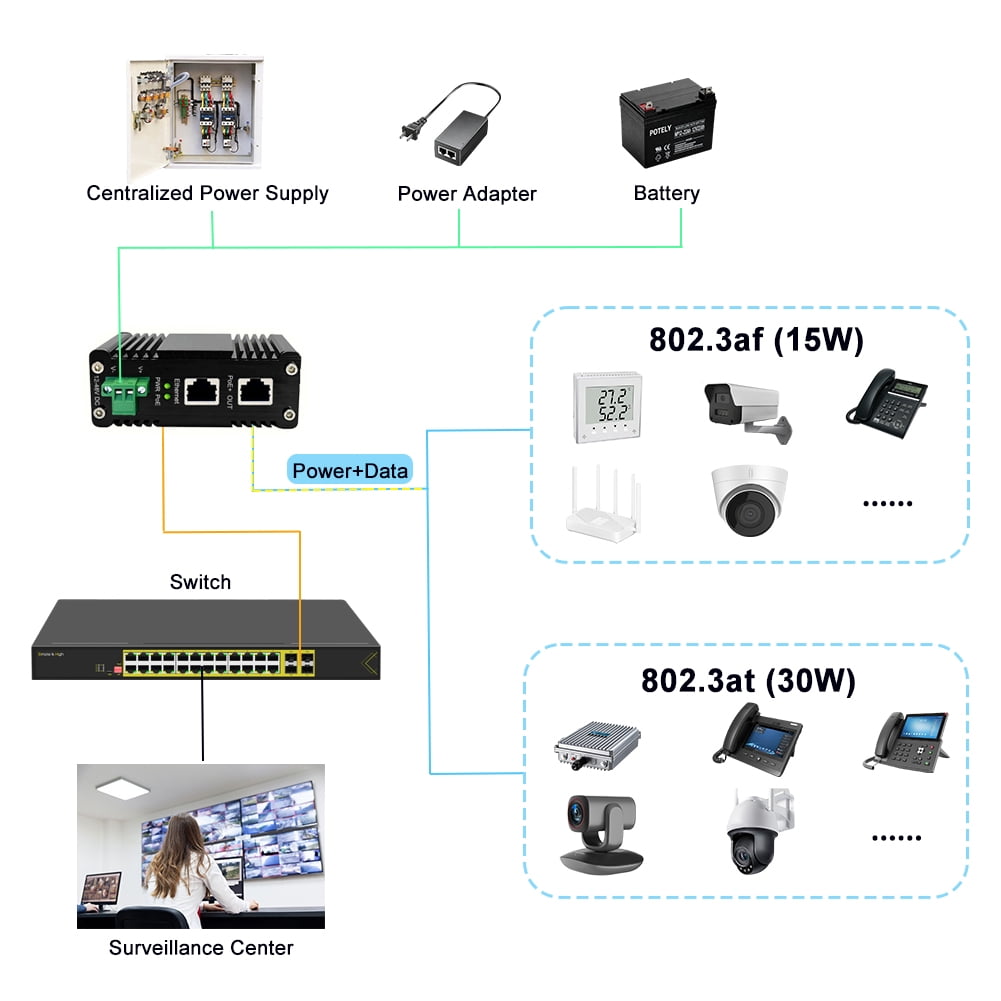

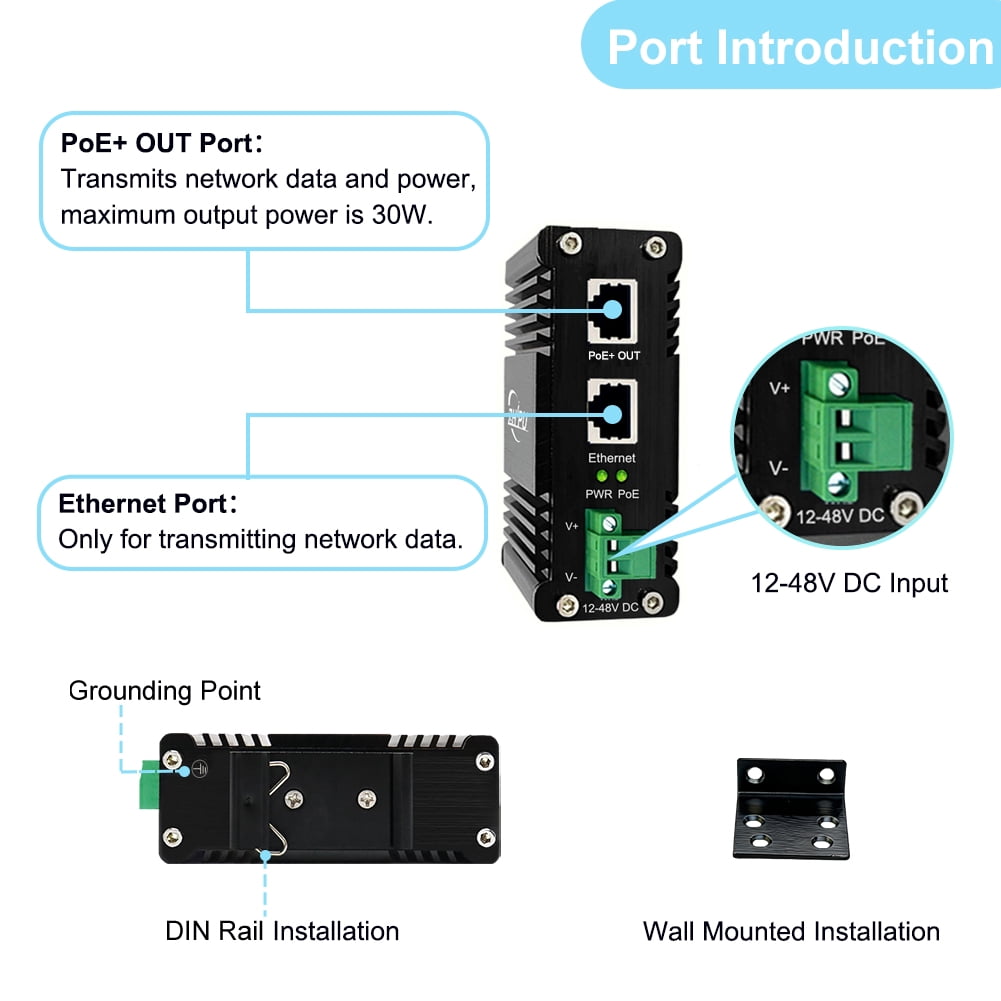

Descriptions: The EK-001-30W is a Hardened Gigabit PoE Injector that allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-TX and are compliant with IEEE 802.3ab. The PoE Out port compliant with IEEE 802.3 af/at. EK-001-30W POE adapter provides an integrated power solution with 12~48VDC wide range voltage input. Features: -- 12~48VDC Power Input; -- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power); -- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment; -- Support 10/100/1000Base-TX; -- Power Pin Assignment: 4/5(+), 7/8(-); -- Support DIN-Rail & Wall-Mount installation; -- Extensive LED indicators for PoE diagnostics; -- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature; -- Dimensions (WxDxH): 95*70*30 mm (3.74*2.76*1.18 inches); -- Weight: 0.25Kg (0.55Ib); -- Casing: Aluminum Case; -- Warranty: 5-Year Warranty. Package: 1 * Elenzk-INJ301 30W PoE Injector 1 * POE injector User Manual 1 * L-Shaped Wall Mount bracket Note: Power Options► The Power Supply for POE injector is to be purchased separately.

• Boost Voltage 9-57V to 48V: Supports 9-57V wide voltage DC input for power redundancy, with max 30W power. Suitable for RV, truck, solar power, VoIP and more.
• IEEE 802.3af/at PoE Standard: Converts 9-58V to 48V, supports IEEE 802.3af (15.4W) and IEEE 802.3at PoE+ (30W).
• Max 30W PoE Output: PoE output port supports IEEE 802.3af (15.4W) and IEEE 802.3at PoE+ (30W) for compatible devices.

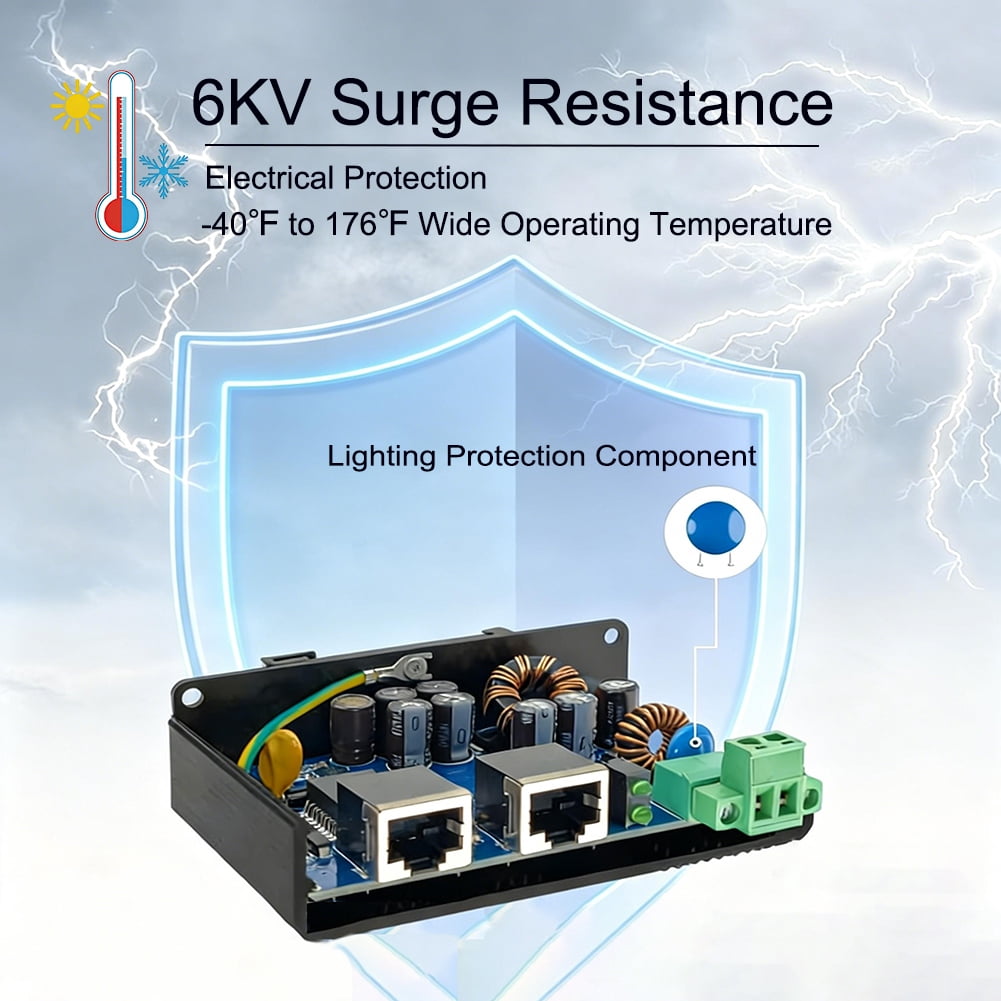

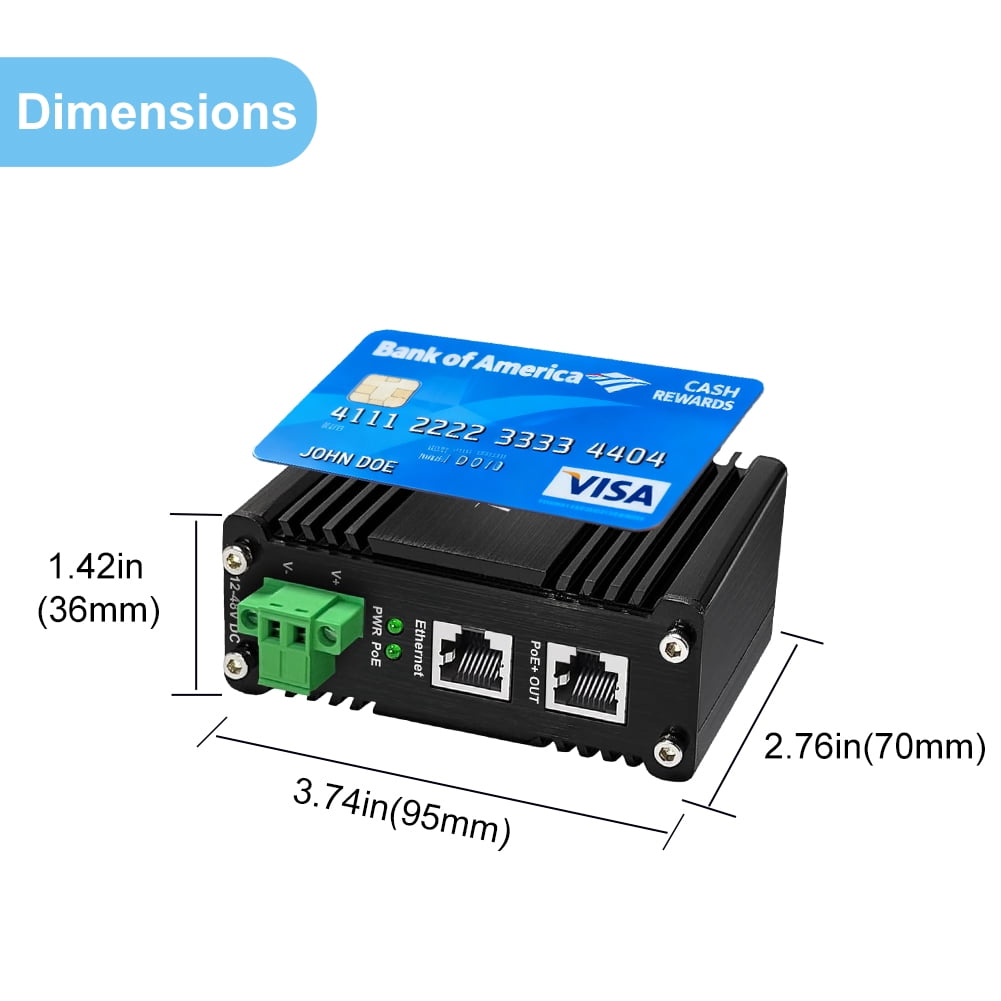

• IP40 Industrial Grade Quality: 6000V surge protection, operates in -40°F to 167°F temperature range. Compact size: 3.74x2.76x1.42in (95x70x36mm).

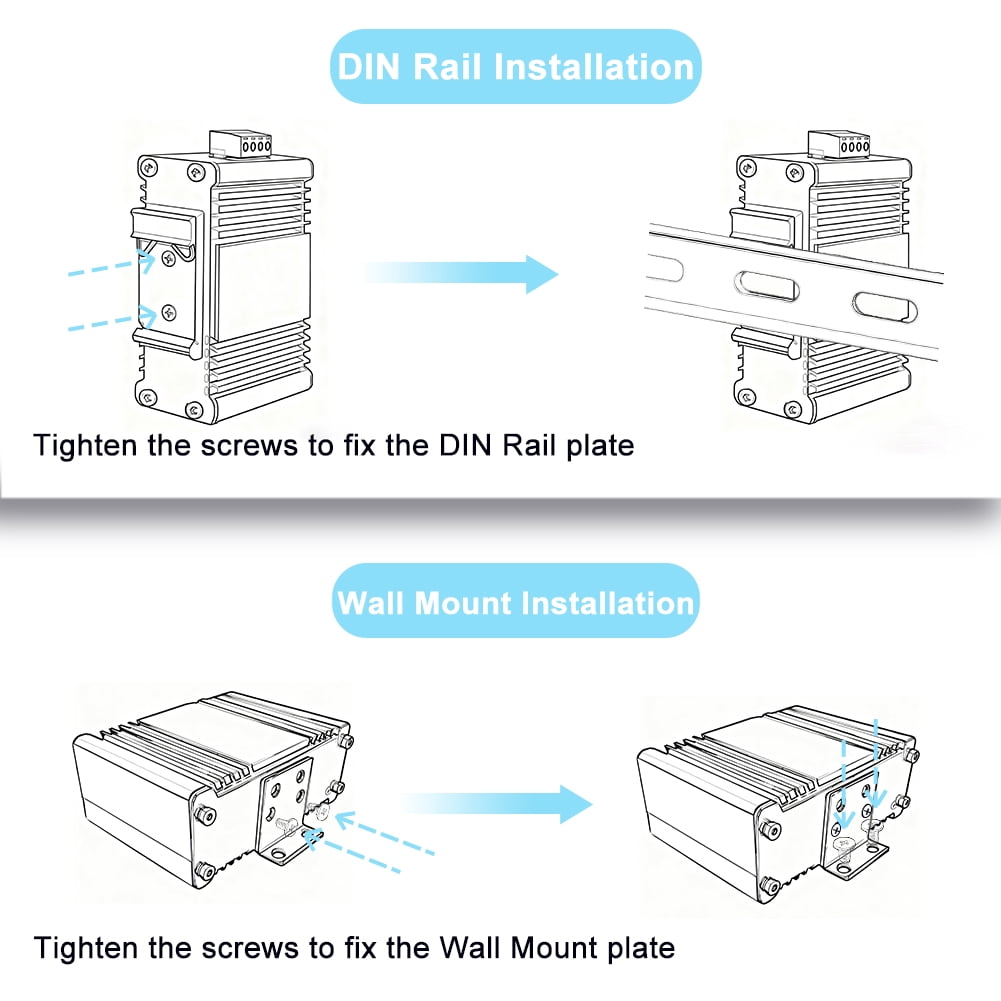

• Din-Rail Wall Mount: The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories.
