Dual-Spectrum Thermal Camera, Thermal Imaging with 640x480 Visible Light Resolution Thermal Imaging Camera for Android, Intelligent Analysis with APP Multifunctional Handheld Infrared Heat Camera

This dual-spectrum mobile infrared thermal imager uses a fine-pitch, high-resolution industrial-grade infrared detector paired with a 3.2mm lens, making it a highly accurate and fast-response portable infrared thermal imaging analyzer.High-quality optical lenses and a high-resolution infrared thermal imager (160x120, 256x192 pixels), along with a 640x480 visible light digital camera for enhanced imaging, deliver outstanding imaging results.Operating wavelength: 8-14 μmFrame rate: 25HzNETD: <50mK @25°CField of view: 35° x 27°, 56° x 42°Temperature measurement range: -15°C to 600°CTemperature measurement accuracy: ±2°C or ±2% of reading, whichever is greaterApp Features:1. Supports automatic high and low temperature tracking, center point temperature measurement, spot temperature measurement, area temperature measurement, line temperature measurement, and temperature range viewing.2. Supports offline analysis of captured images, including point, line, and rectangle analysis. 3. Supports visible light mode, multiple visible light and infrared fusion modes, and single infrared mode display.4. Supports one-click quick search of high-temperature areas, locks on a fixed temperature value for observation, and highlights targets within a fixed temperature range.5. Image color palettes: Iron Red, White Hot, Black Hot, Rainbow, Red Hot, and Cold Blue.6. Supports image graffiti and text annotation.

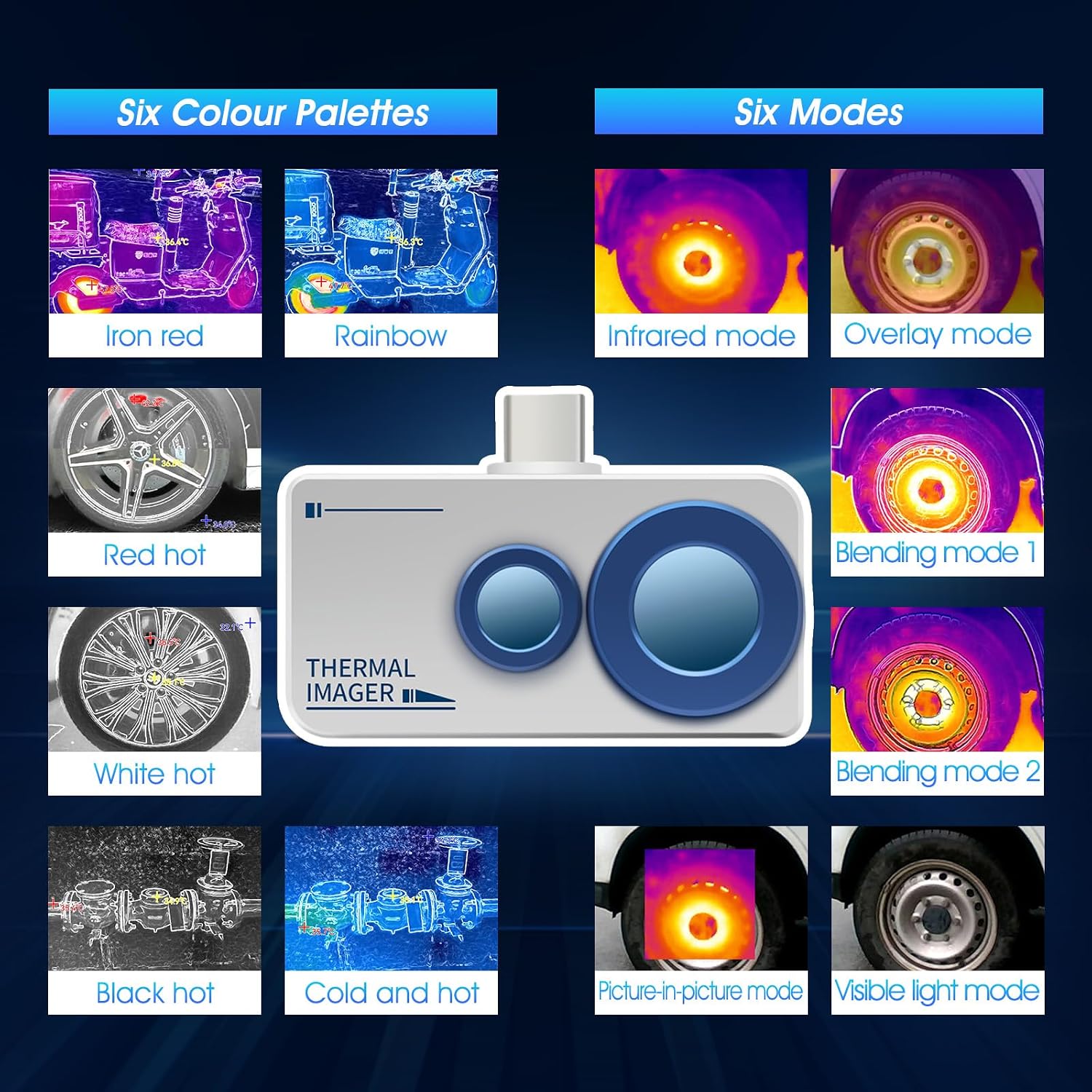

• Dual-Lens Thermal Camera: The INFURIDER YF-H2F6B features a dual-lens design, combining dual-spectrum infrared thermal imaging with visible light auxiliary imaging, providing a dual-field-of-view experience. The thermal imaging supports visible light mode, multiple visible light modes, single infrared mode display, and infrared fusion mode for temperature measurement, resulting in clearer and more detailed images
• High-Precision Thermal Imager: The thermal imaging camera offers infrared resolutions of 160x120 and 256x192, and a visible light resolution of 640x480. The infrared camera with a small pixel pitch and high resolution, it features a 3.2mm lens and a 25Hz frame rate, achieving a measurement accuracy of ±2%
• Android Phone App Connection: The infrared cameras thermal imaging features a built-in Type-C port for easy connection to Android phones. The thermal imaging camera app not only allows real-time viewing of thermal imaging data but also supports offline analysis of captured images, including point, line, and rectangle analysis. The app also supports image doodles and text annotations, improving efficiency
• Smart Alarm Imager: This infrared thermal imaging camera supports high-temperature alarms with user-defined alarm thresholds. The app automatically tracks high and low temperature points and issues timely alerts to prevent overheating risks. It is ideal for industrial monitoring or home security
• Multifunctional Infrared Camera: The app integrates features such as automatic high and low temperature tracking, spot temperature measurement, area temperature measurement, and line temperature measurement. The heat camera thermal is lightweight and portable, plug-and-play, and offers a variety of image color palettes for viewing: iron red, white hot, black hot, rainbow, red hot, and cold blue. Infrared thermal imaging cameras are widely used in various environments and industries
