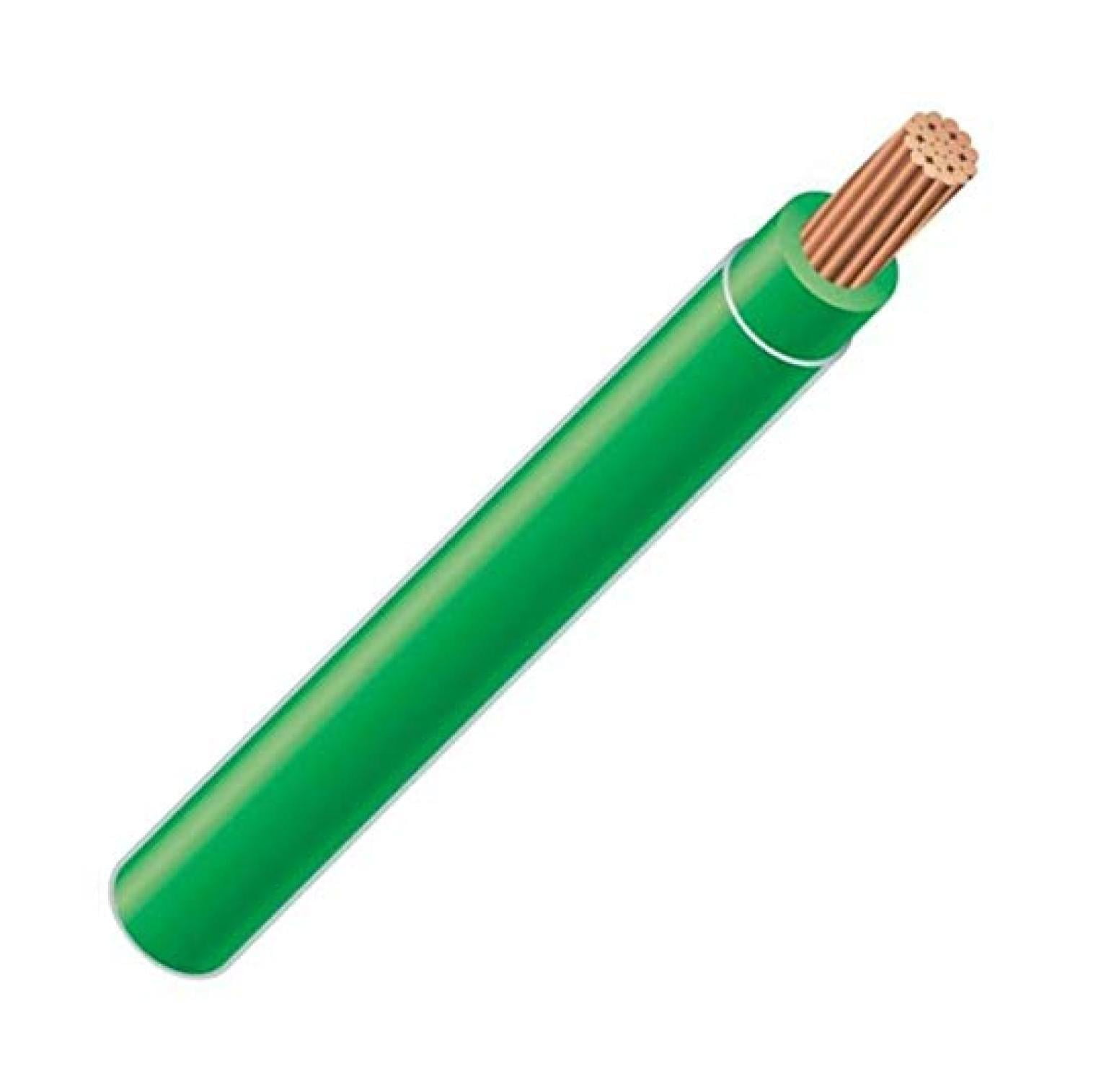

8 AWG 19-Stranded THHN Green Copper Building Wire (75Ft Cut)

Applications:Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the Electrical Code (). 8 AWG THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 60°C in oil or coolants. Applications requiring Type conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.Also Known As:8 AWG Copper wire, 8 AWG THWN-2, 8 AWG Building Wire, hook up wire, conduit wire, lighting wire, nylon copper wire, construction cable, 8 Gauge Wire.FeaturesNylon outer for easy pulling. -1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.:A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.Standards: Standards UL-83, UL-1063, UL-758AWM Spec 1316, 1317, 1318, 1319, 1320, 1321ASTM Stranding Class B3, B8, B787Federal Specification A-A-59544NEMA WC70/ICEA S-95-658Institute of Electrical and Electronics EngineersConstrction:Insulation:Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8Specifications:Size:8 AWGNumber of Strands:19PVC Insulation Thickness (Conductor):0.760 mm / 0.030 inchesNylon Thickness:0.130 mm / 0.005 inchesOutside Diameter:5.39 mm / 0.212 inchesWeight per Foot: 0.069 lbsAllowable Ampacity:40 Amps at 60℃ / 50 Amps at 75℃ / 55 Amps at 90℃

• Rated for 600-Volts with a Heat Capacity of up to 60 Degrees Celsius in Wet Locations and 105 Degrees Celcius in Dry Locations.
• Has an Allowable Ampacity of: 40 Amps at 60 Degrees Celsius, 50Amps at 75 Degrees Celsius, and 95 Amps at 55 degrees Celsius
• Can be Used in Wet or Dry Locations. Insulation is High Heat and Moisture Resistant Polyvinyl Chloride (PVC). is Abrasion, Moisture, Gasoline, and Oil Resistant Nylon
• Contains Copper (Cu) Conductors Made with Annealed (Soft), Compressed Copper
• #8 AWG Wiring for Outlets, Switches and Other Loads
